Multi-Monitor KM Switches
for Trading Desk Workstations

Improved Situational Awareness with Multiple Computer Control

Brochure

Freedom KM Switches

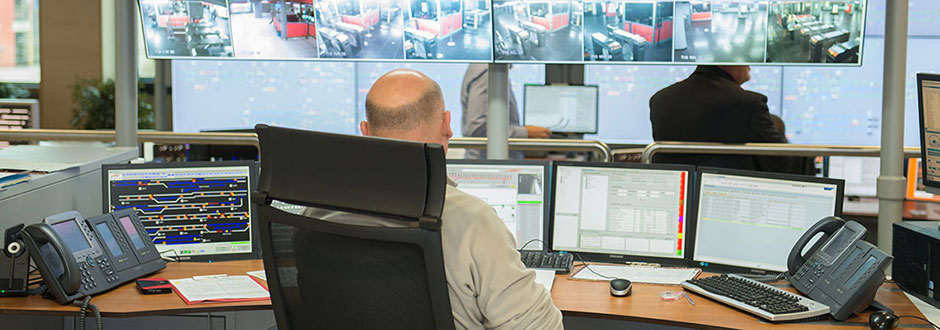

A streamlined workspace with improved desktop ergonomics is essential to improve operator response times. That's why stockbrokers and operators in public safety, broadcasting, defense and transportation rely on Multi-Monitor KM Switches. Hardware-based, they offer reliable operation that provides the ability for a dispatch operator to switch between up to eight machines simply by moving the mouse across the desk monitors. Black Box offers with Freedom II and TC Series two multi-monitor KM switches with Glide-and-Switch Technology for trading workstation and control rooms.

Contact Us Now

Product Features

• Multiple Computer Control

  Interact with multiple computers using a single keyboard and mouse, while keeping simultaneous access to all video and audio sources.

• Instant Switching

  Switch between target computers by simply moving the mouse pointer from monitor to monitor.

• Share Peripherals

  Combine audio, share independently switched USB 2.0 peripherals or copy and paste files between the systems.

• Redundant power

  Dual power supplies provide uninterrupted workflows for mission-critical situations where automatic failover is required.

Product Comparison Freedom II versus TC Series

Black Box offers with Freedom II and TC Series two Multi-Monitor KM switch solutions for trading workstations and control rooms.

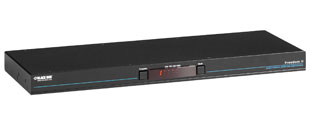

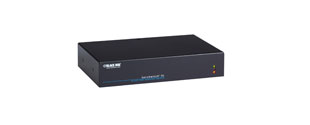

	Freedom II Keyboard Mouse Switches	TC Series Keyboard Mouse Switches
Computer Ports	4- or 8-port versions available
USB HID	2 USB HID ports	2 or 4 USB HID ports
USB 2.0	n/a	option with 2 USB 2.0 ports
Audio	3.5mm audio jacks
Multi-Head CPUs	Windows 7/8/10 (yes w/ABS drivers) Mac and Linux are single-screen only	Windows 7/8/10 (yes w/ABS drivers) Mac and Linux are single-screen only
Active Monitor Indication	via optional LED-Hub and LEDs	No
Power	optional redundant power supply	single power supply
Mounting options	desktop, optional 19" mounting kit	desktop, optional DIN-rail and 19" mounting kits
Applications	Standalone solution or integration with Enterprise KVM Switching & Extensions systems
Order code	KV0004A-R2 / KV0008A-R2	ACX1004A-HID2 / ACX1004A-HID4 / ACX1004A-U23 / ACX1008A-HID2
Compatible KVM Systems	AgilityKVM over IP / Emerald® KVM over IP The Freedom II can interface with up to eight Agility or Emerald receivers to allow target switching over one keyboard and mouse.	DKM KVM Matrix Fully compatible with DKM FX, DKM FXC and our DVI Extenders and all USB devices.
Copy and Paste	Yes, Firmware 2.10 (and later) using App Download Firmware and Release Notes	No

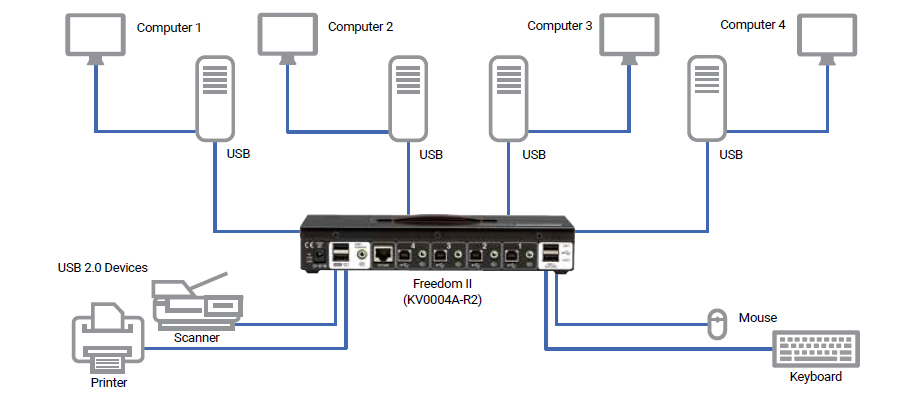

Multi-Monitor Switch Application Diagram
