Guide to Keyboard, Video and Audio connectors

DVI

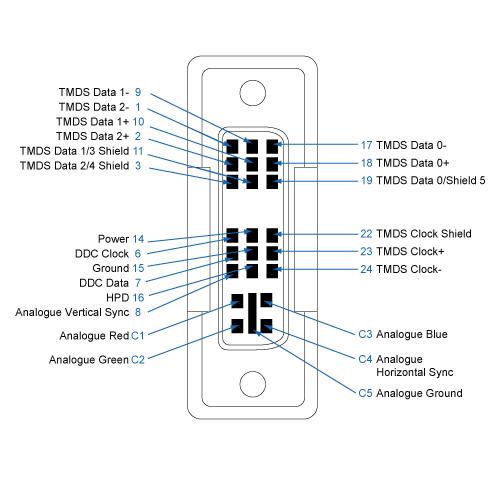

DVI-I Single Link

DVI-I Single Link Connector
See pinning diagram

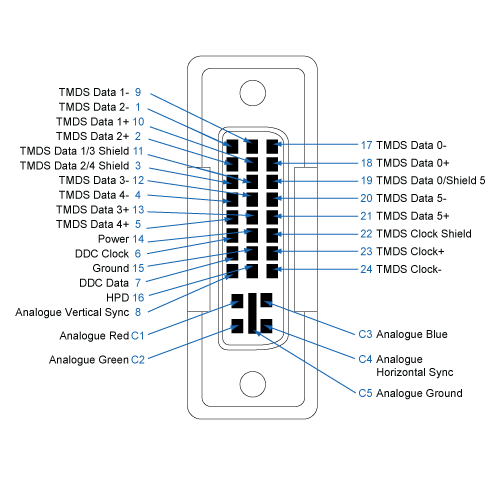

DVI-I Dual Link

DVI-I Dual Link Connector
See pinning diagram

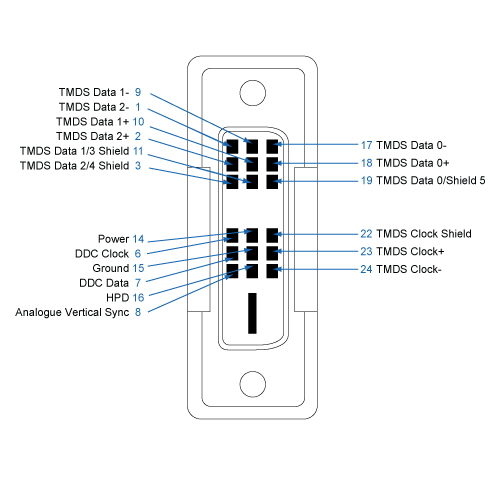

DVI-D Single Link

DVI-D Single Link Connector
See pinning diagram

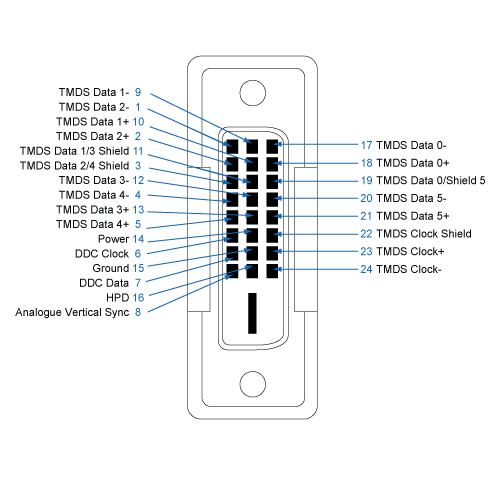

DVI-D Dual Link

DVI-D Dual Link Connector
See pinning diagram

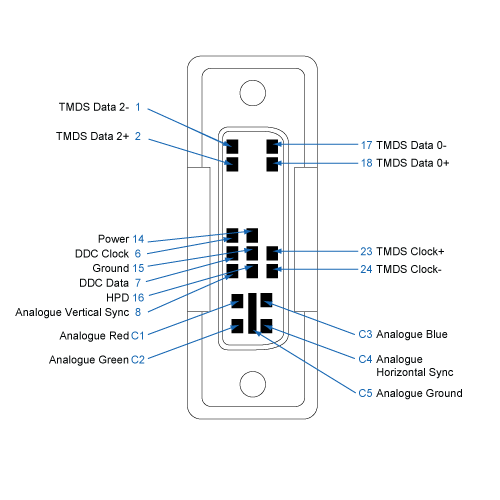

DVI-A

DVI-A Connector
See pinning diagram

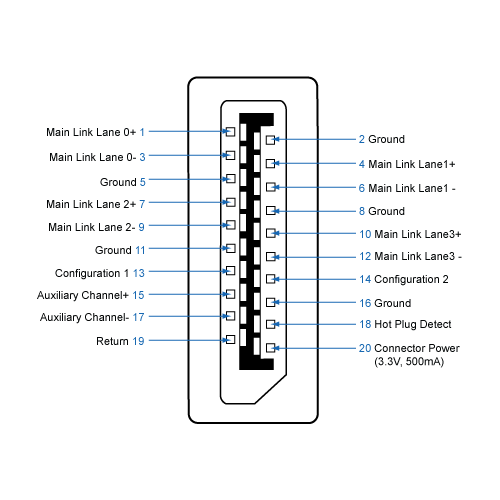

DisplayPort

DisplayPort

DisplayPort Connector
See pinning diagram

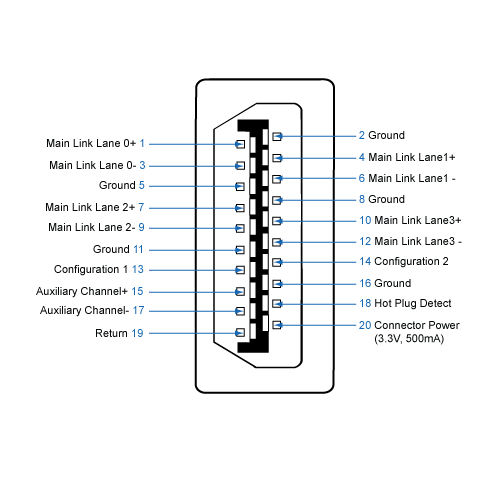

Mini DisplayPort

Mini DisplayPort Connector
See pinning diagram

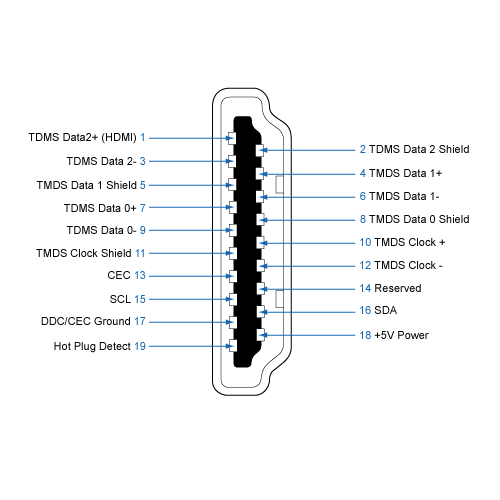

HDMI

HDMI

HDMI Interface
See pinning diagram

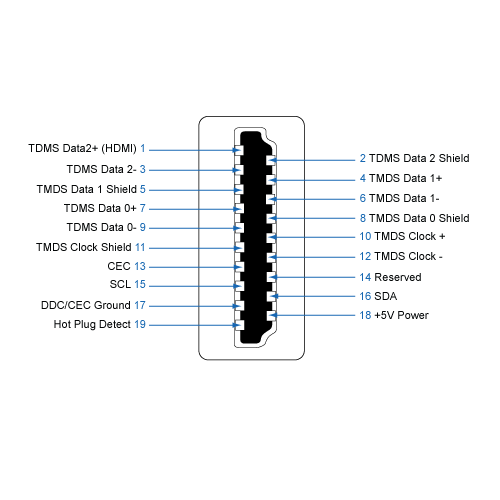

Micro HDMI

Mini HDMI Interface
See pinning diagram

Miscellaneous

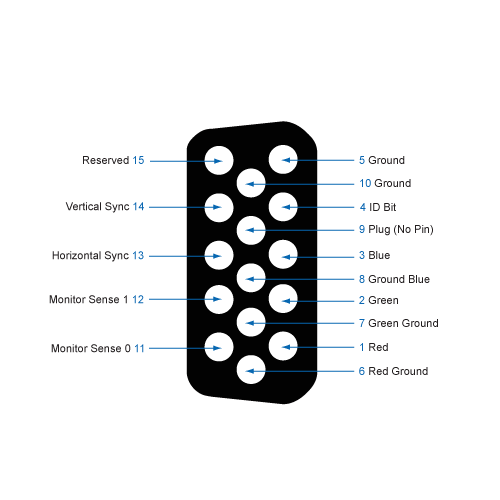

VGA (HD15)

VGA Interface
See pinning diagram

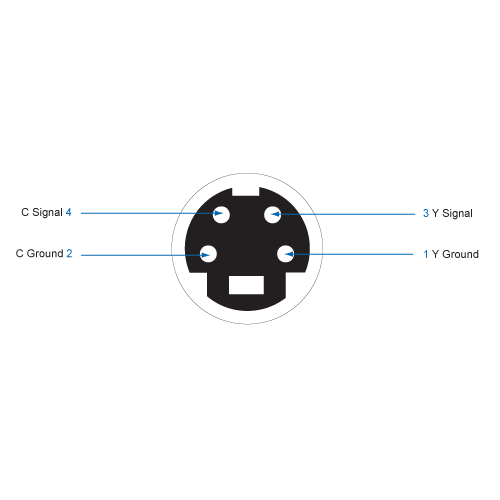

S-Video

S-Video Interface
See pinning diagram

TOSLINK

TOSLINK Interface

RCA

RCA Interface

BNC

BNC

F-Type Coax

F-Type Coax

NOTE: Images are not to scale.
