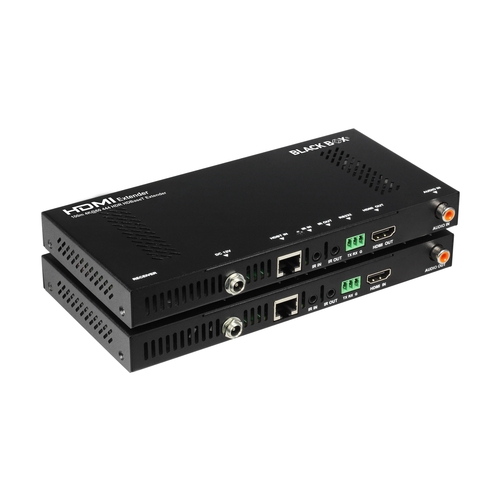

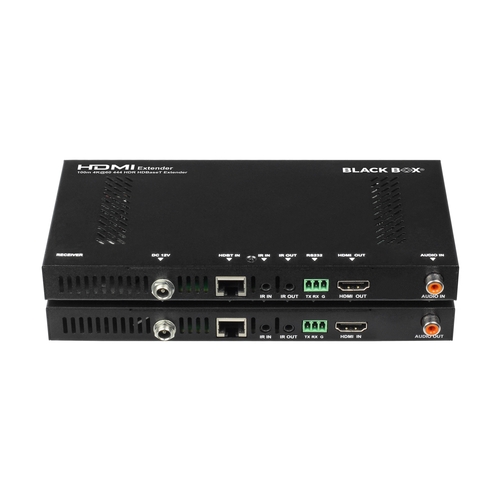

HDMI 2.0 Extender over CATx
Photo may vary from actual product
AVX-HDMI2-HDB-R2: (1) HDMI, 70m, Kit
AVX-HDMI2-HDB-R2: (1) HDMI, 70m, Kit


HDMI 2.0 Extender over CATx


Distribute uncompressed UHD video, audio, power, or IR together up to 328 ft. (100 m) over a single CATx cable.


  • HDCP 2.2 compliant
  • HD signal transmission via a single CAT5e/CAT6 cable up to 100 m (1080p) and 70 m (4K at 60 Hz YUV 4:4:4)
  • HD signal transmission via a single CAT6A/7 cable up to 100 m (1080p) and 100 m (4K at 60 Hz YUV 4:4:4)
  • IR pass-through allows you to control the source from the display location or control the display from the source location
  • Use two RS-232 control systems for serial communication by connecting to the devices via serial cables to control the source device or display
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
(1) HDMI
70m

Kit
  HDMI 2.0 Extender over CATx
HDMI 2.0 Extender over CATx
  AVX-HDMI2-HDB-R2

Send high-quality video & audio signals further, without replacing the copper cable, with this HDMI 2.0 Extender. In compliance with HDR & HDCP 2.2 standards, it supports 4K@60 4:4:4 resolution, Dolby & DTS HD audio, & bi-directional IR control, in a low-profile box. Configure the ARC channel feed for a TV (with ARC support) or an auxiliary S/PDIF input port via an audio output DIP switch on the receiver.

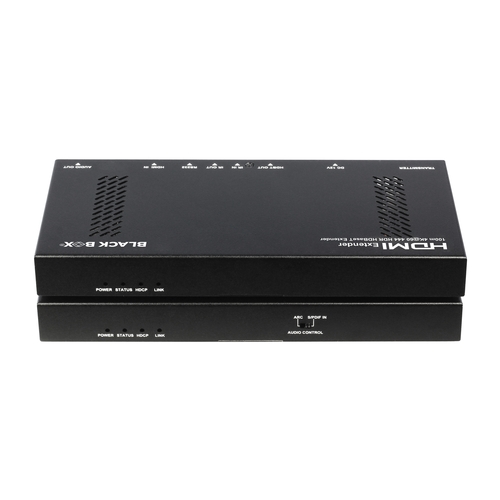

The extender uses proprietary one-way PoC technology to power the receiver from the transmitter. LEDs show power and signal status for established connections between devices.

With increased bandwidth up to 18-Gbps, you can extend signals over CATx cable up to 100 meters. while maintaining:

  • Higher resolutions
  • Higher frame rates
  • Multiple full HD streams in the same pipe
  • 21:9 aspect ratio
