C5EEZUP-100PAK, CAT5e Unshielded EZ-RJ45 Plugs

Store home > Cables > Plugs & Adapters > CATx > CAT5e Unshielded EZ-RJ45 Plugs

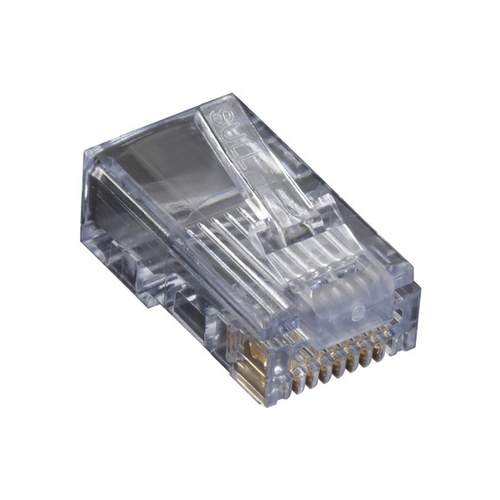

Photo may vary from actual product		CAT5e Unshielded EZ-RJ45 Plugs Make the easiest CAT5e cable terminations ever. Insert wires right through the connector. Simple one-piece design eliminates loading bar and liners. Verify proper wiring at a glance. When done, simply pull the connector down over the cable jacket. Trim the wires and crimp the connector in one step with the EZ Crimp Tool. Make faster terminations and reduce wasted crimps and scraps. Backward compatible with CAT5 and CAT3 cable. Work with solid or stranded cable. FCC compliant and UL® rated. Also available in a shielded plug. Warranty: Lifetime Double Diamond™ Warranty

	Product				Code


25-pack	CAT5e Unshielded EZ-RJ45 Plugs	C5EEZUP-25PAK Last Time Buy
50-Pack	CAT5e Unshielded EZ-RJ45 Plugs	C5EEZUP-50PAK

"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items. Note: Boots sold separately.

Accessories

	Product	Code

EZ-RJ45 CAT5e Strain-Relief Boots
	EZ-RJ45 CAT5e Strain-Relief Boots - 25-pack, Clear	C5EEZ-BOOT-CL
EZ-PRO High-Density Crimp Tool
	EZ-PRO High-Density Crimp Tool	FT1200A

In-depth info

Documentation

The Black Box EZ connectors meet the specifications of CAT5e. The connector has a simple one-piece construction with no terminal strips or inserts. This allows the technician to be connected through the connector cable just to the head end of the connector. Thus, the wiring of the cables are more easily visually checked before crimping.

To further optimize the electrical performance, the technician can pull the connector firmly over the cable sheath. Thus, the cable is secure at the back of the connector and the distance between the twist and the contacts can be minimized.

Especially in in low light levels and awkward spaces it’s hard to see what you’re doing, to cut to length correctly, and poke the wires into the right apertures. The EZ connector simplify your on site termination and save time. Easy visual checks and proper fitting offer greater reliability and real cost savings.

Use the EZ-RJ45 Crimp Tool (FT1100A) or EZ-RJPRO™ Crimp Tool (FT1200A) as well as CAT5e boots (C5EEZ-BOOT).

Advantages of EZ terminations:
- No need to trim the outer jacket to an exact length, just pull the wires through until it is correct.
- Easier to see the wire colours, and make sure the wires are correctly placed.
- With diagonal cuts the wires get easier into the guides in the plug without error.
- No problems with some wires end up too short to go to the end of the guide.
