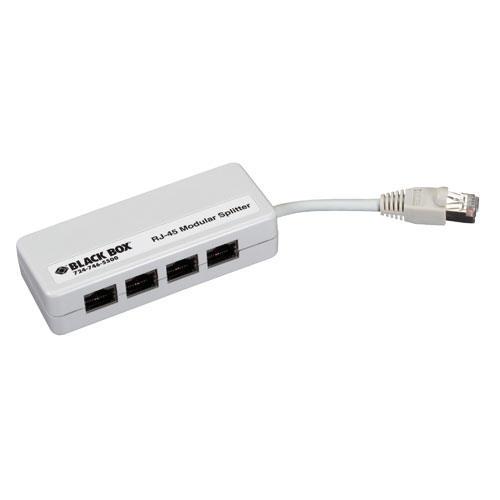

FM820-R2: Pinout A, Unshielded, With 6cm cable
Photo may vary from actual product

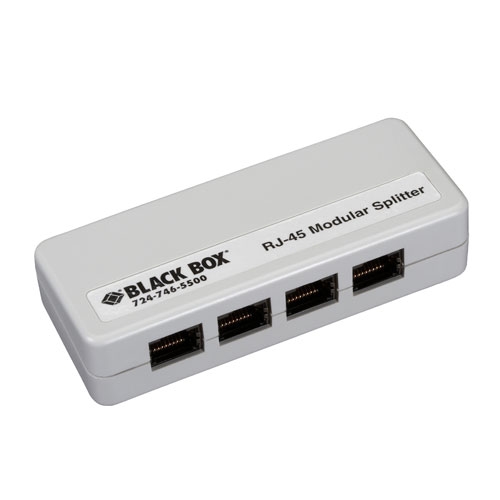

FM805-R2: Pinout B, Unshielded, Without 6cm cable

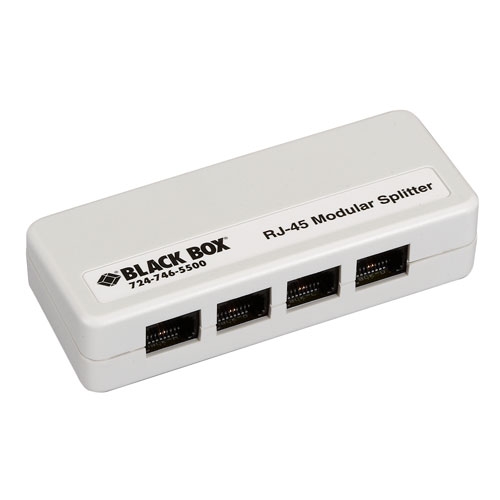

FM810-R2: Pinout A, Shielded, Without 6cm cable
FM835-R2: Pinout B, Shielded, With 6cm cable


RJ45 Splitters


Break one RJ-45 jack into four


  • Break out one RJ-45 modular jack or plug into four jacks.
  • Connections are made via an integral circuit board.

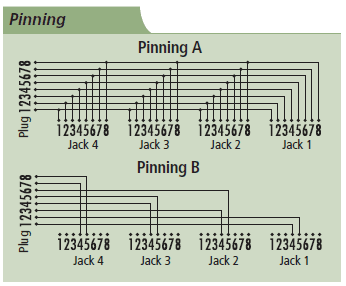

  • See the application diagram below for Pinning A and B.
  • Warranty: Lifetime Double Diamond™ Warranty

  Product       Code
Pinout A
Shielded

Without 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM810-R2
Unshielded

With 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM820-R2

Without 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM800-R2
Pinout B
Shielded

With 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM835-R2
Unshielded

Without 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM805-R2

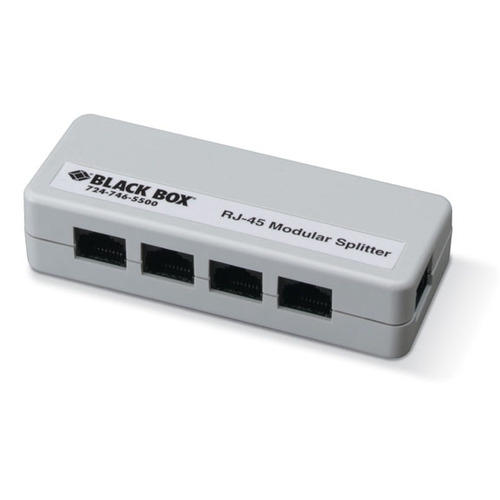

These RJ45 Modular splitters break out one RJ-45 modular jack or plug into four jacks.
Connections are made via an integral circuit board. Two different pinning specifications are available and the splitters are available shielded or unshielded with or without a 6cm cable.
